How to Replace an Outlet ($3 Part, 20-Minute Job)
Replacing a standard outlet takes 20 minutes and costs about $3 in parts. Here's how to replace an outlet safely: wire colors, GFCI rules, and when to call a pro.
Quick answer: To replace a standard outlet, turn off the breaker controlling that circuit, confirm power is off with a non-contact voltage tester, remove the cover plate and two mounting screws, pull the outlet from the box, photograph the wiring, then transfer wires to the same terminals on the new outlet: black to brass, white to silver, bare copper or green to the green screw. Push it back in, replace the cover plate, restore power, and verify with a three-light outlet tester. Parts cost $3-8. Time: about 20 minutes.
An outlet that lets a plug fall out on its own, or one that’s yellowed and cracked, or one that’s discolored around the slots from years of heat and use: replace it. A standard 15-amp receptacle runs about $3 at any hardware store. The only tool you might not own is a non-contact voltage tester, which costs around $12. Everything else is a Phillips screwdriver and basic attention to detail.
The process is simpler than most people expect. Pull out the old outlet, photograph the wiring, transfer the wires to the same spots on the new outlet, push it back in. The whole job takes about 20 minutes the first time. The second time it takes 10.
Safety note: Before touching any wire, always confirm power is off at the outlet with a voltage tester. The wall switch does nothing here; the breaker is what matters.
What You’ll Need
- A new outlet/receptacle ($3-6 for a standard 15-amp, $5-10 for tamper-resistant or 20-amp)
- Phillips screwdriver
- Flat-head screwdriver
- Non-contact voltage tester (~$12-15; get one if you don’t own one, there is no safe substitute)
- Three-light outlet tester ($8-10; confirms wiring is correct after installation)
- Needle-nose pliers (optional, helpful for shaping wire hooks)
- Wire strippers (optional, only if wire ends are oxidized or too short)
- Masking tape and a marker (optional, for labeling wires if the box is complex)
Step 1: Know What You’re Replacing
Before buying a replacement, identify what you have.
15-amp vs. 20-amp: Most household outlets are 15-amp, with two vertical slots and a round or U-shaped ground hole. A 20-amp outlet has a T-shaped neutral slot (the left slot has a small horizontal notch). If you have a 15-amp circuit with 14-gauge wire, don’t install a 20-amp outlet. If you have a 20-amp circuit with 12-gauge wire, either a 15-amp or 20-amp outlet works fine. Wire gauge identification: 14-gauge is roughly the diameter of a straightened paper clip; 12-gauge is stiffer and noticeably thicker.
Tamper-resistant (TR): The National Electrical Code has required tamper-resistant outlets in all new residential construction since its 2008 edition, and in most jurisdictions, in replacement outlets as well. You can identify them by the “TR” stamping on the face between the slots. They have spring-loaded shutters that require simultaneous pressure on both slots before a plug can go in. A practical upgrade for any replacement job, tamper-resistant outlets cost $1-2 more than standard ones.
Does this location need GFCI? If the outlet is in a kitchen within 6 feet of a sink, a bathroom, a garage, an outdoor location, a basement, or a crawl space, it needs GFCI protection. That means either a GFCI outlet at that location or a GFCI breaker upstream. If you’re replacing a plain outlet in one of these locations, consider swapping it for a GFCI type. See how to reset a GFCI outlet for how GFCI protection actually works before you decide.
Step 2: Turn Off the Breaker and Confirm It’s Off

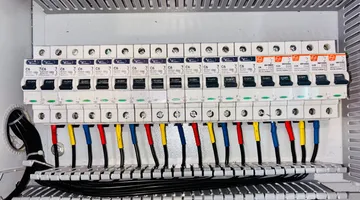

Go to your breaker panel. Find the breaker that controls the circuit this outlet is on. If labels are wrong or missing, plug a lamp into the outlet and flip breakers one at a time until the lamp goes out. Flip that breaker to OFF.
Back at the outlet, hold the tip of the non-contact voltage tester near each slot. No beep and no light means the circuit is dead. Test both slots and the area around the outlet face. Some older homes have multiple circuits running through the same box; if the tester reads any voltage after you’ve flipped the labeled breaker, go back to the panel and look for a second one controlling that location.
The wall switch does nothing for this job. The only thing that de-energizes the circuit is the breaker.
Step 3: Remove the Old Outlet
- Use a flat-head screwdriver to remove the single screw holding the cover plate. Set it aside.
- Remove the two Phillips screws (one at top, one at bottom) holding the outlet to the electrical box.
- Grip the top and bottom mounting ears of the outlet and pull it straight out of the box. The wires will follow.
Pull gently. Some wires are cut short and won’t give you much slack to work with.
Step 4: Photograph the Wiring
Before touching a single wire, take a photo with your phone showing exactly which wire is on which terminal. This takes two seconds and saves guessing later.
Most standard outlet boxes have three wires: black (hot), white (neutral), and bare copper or green (ground). If your box has two sets of wires, meaning the outlet is on a chain passing power to the next outlet downstream, the photo is even more important.
Step 5: Disconnect the Old Outlet
Wires attach to outlets in two ways: screw terminals or backstab push-in holes.
If wires are on screw terminals, loosen each screw and pull the wire free. Work one wire at a time.
If wires are backstabbed (pushed into holes in the back of the outlet), insert a small flat-head screwdriver into the narrow release slot next to each hole to pop the wire free.
Step 6: Connect Wires to the New Outlet
Wire color tells you exactly where each wire goes:
- Black wire (hot): brass-colored screw on the outlet’s right side (as you face the front)
- White wire (neutral): silver-colored screw on the outlet’s left side
- Bare copper or green wire (ground): green screw at the bottom
If wire ends have a hook shape, orient each hook clockwise around the screw so that tightening the screw pulls the hook in rather than pushing it loose.
Use the screw terminals, not the backstab holes. The push-in connections on most outlets rely on a spring that can weaken over years of heating and cooling cycles. Leviton and Hubbell, two of the main commercial receptacle manufacturers, both specify screw-terminal connections for reliable, long-term performance in their installation guides. Backstab connections are quick on a job site; screw terminals are more reliable in the long run.
Tighten each screw until the wire is firmly clamped. Snug and secure. Don’t crank hard enough to strip the screw or crush the wire insulation.
If your box has two sets of wires, connect like wires together: both black wires to the two brass screws, both white wires to the two silver screws.
Step 7: Push the Outlet Back In and Secure
Fold the wires into an accordion shape and push them carefully into the back of the box. The outlet should sit flush with the wall surface when mounted.
Start both mounting screws by hand to avoid cross-threading, then tighten with the Phillips screwdriver. Check that the outlet sits straight in the box. Thread the cover plate screw back in.
Step 8: Restore Power and Test
Flip the breaker back on.
Plug in the three-light outlet tester. The correct-wiring pattern is printed on the back of the tester. If you see an error pattern (open ground, hot and neutral reversed, open neutral), turn the breaker back off and check your terminal connections against the photos you took.
If you don’t have an outlet tester, a lamp or phone charger will confirm the outlet runs but won’t tell you if the wiring is correct. An $8 outlet tester shows immediately whether the wiring is right; a lamp won’t.
If your circuit breaker keeps tripping after you restore power, the issue is upstream of the outlet, not with the replacement itself.
Common Mistakes
Skipping the voltage tester. The one time you skip it is the one time someone turned a breaker back on, or the wrong breaker was off to begin with. The test takes five seconds.
Using backstab connections. These work fine when new. Over years of expansion and contraction, the spring tension can weaken and the connection becomes intermittent. Arcing from a loose backstab is one of the more common causes of outlet failure. If you’re already this far into the job, use the screws.
Mixing up the terminal screws. Brass is hot (black wire), silver is neutral (white wire), green is ground. If you’re looking at the outlet from the front, brass screws are on the right, silver on the left. If you wire it backwards, the outlet tester will tell you immediately: the “hot/neutral reversed” indicator lights up.
Over-tightening the mounting screws. Common with older plastic boxes. Snug is enough. A cracked or deformed box can let the outlet shift later.
Ignoring GFCI requirements. If you replace a kitchen, bathroom, garage, or outdoor outlet with a plain receptacle, you’re likely moving backward on code compliance. A GFCI outlet adds about $12-18 to the job. If the circuit is already GFCI-protected upstream, a plain outlet at the downstream location is fine.
When to Call a Pro
Aluminum wiring. Aluminum wiring was common in homes built between 1965 and 1973. It looks silver or gray, while copper is orange-pink. Aluminum requires anti-oxidant compound and CO/ALR-rated devices; standard outlets are not compatible. This is a job for a licensed electrician.
No ground wire in the box. Two-wire construction (black and white only, no ground) is common in older homes. The NEC does allow installing a GFCI outlet without a ground and labeling it “No Equipment Ground,” but working out the proper approach to upgrade older wiring takes judgment. If you’re not sure what you’re looking at, call an electrician.
Signs of burning or arcing. Charred marks in the box, melted insulation on any wire, or a burning smell from the outlet: these mean the wiring problem is bigger than the receptacle. If your lights have been flickering on that circuit before the outlet failed, that’s another sign the issue is in the wiring rather than the outlet itself. Stop, close the box without touching anything, turn off the breaker, and call an electrician. Do not use that circuit.
240-volt outlets. These have different slot shapes, typically larger and tilted or L-shaped. They run on two hot legs and require a different replacement process. Not a job for a first-timer.
Overstuffed boxes. If you open the box and find a dense tangle of wires with no room to work safely, call an electrician. Working in an overcrowded box is how wire insulation gets nicked, and a nicked wire inside a wall becomes a problem later.
FAQ
How do I know if I need a 15-amp or 20-amp outlet? Check the breaker controlling that circuit. A 15-amp circuit uses 14-gauge wire (roughly paper-clip diameter) and a 15-amp breaker. A 20-amp circuit uses 12-gauge wire (stiffer, noticeably thicker) and a 20-amp breaker. You can put a 15-amp outlet on a 20-amp circuit, but never a 20-amp outlet on a 15-amp circuit. When in doubt, replace with the same type you removed.
Can I replace a 2-prong outlet with a 3-prong? Yes, but not by just swapping in a 3-prong outlet without a ground wire. Without an actual ground wire in the box, you have two options: run a new ground wire back to the panel (an electrician job), or install a GFCI outlet and label it “No Equipment Ground” as allowed by NEC 406.4(D). The GFCI option provides shock protection without a true equipment ground.
Does it matter which way the outlet faces (ground hole up or down)? Code and most electricians prefer ground hole down. With the ground slot up, a falling plug cover can bridge the hot and neutral slots. With it down, a falling cover hits the ground slot first. Pick one orientation and be consistent throughout your home.
What if I find wires I can’t identify by color? If wires are wrapped with electrical tape instead of colored insulation, or if nothing matches the standard color code, stop and call an electrician. Non-standard wiring can mean aluminum wiring, a multi-wire branch circuit, or previous work that didn’t follow code. An outlet tester won’t sort this out.
How do I confirm my outlet is already GFCI-protected upstream? Even if an outlet has no TEST/RESET buttons, it might be downstream of a GFCI elsewhere on the circuit. Test it: note the outlet is working, then find the GFCI elsewhere on the same circuit (often in a garage or bathroom), press TEST, and check whether your outlet loses power. If it does, the outlet is protected. The same test applies to outdoor outlets without buttons.
Why does my new outlet feel loose in the box? The mounting slots on outlets allow adjustment for different box depths. If the box sits too deep in the wall, the outlet face won’t be flush. Outlet extender shims (sold in packs for about $2) bring the outlet forward without any wiring changes.
What’s the difference between a tamper-resistant outlet and a standard one? A tamper-resistant outlet has spring-loaded plastic shutters behind the slots. Both slots have to be pressed simultaneously before a plug can go in, which blocks kids from inserting objects into a single slot. The Consumer Product Safety Commission reports that roughly 2,400 children are treated for electrical outlet injuries each year, which is part of why the NEC made tamper-resistant outlets required in new residential construction starting in 2008. They cost $1-2 more than standard outlets.
What if there are two sets of wires in the box? This is normal. The outlet is in the middle of a circuit chain, with one cable bringing power in and another carrying it to the next outlet. Connect both black wires to the two brass screws, both white wires to the two silver screws, and both ground wires to the green screw (or use the green screw plus the grounding hole in the box if both ground wires are long enough). Take a clear photo before disconnecting anything.
Replacing an Outlet Is a 20-Minute Job
A cracked, yellowed, or loose outlet is a 20-minute fix. Once you’ve replaced one, you’ll notice every other loose outlet in the house. They’re all the same swap.
The skills carry over directly: replacing a light switch is almost identical, and once you’re comfortable with that, installing a ceiling fan follows the same logic with a few more wires.
The breaker and the voltage tester are the two things that matter for safety. After that, the job is just wire colors and screws.
